A compact, lightweight structure makes the Remeha Gas 210 Ace floor standing boiler quick and easy to install.
It has the capacity to be installed back-to-back, which provides added flexibility in space-saving design.
Floor Standing Boilers

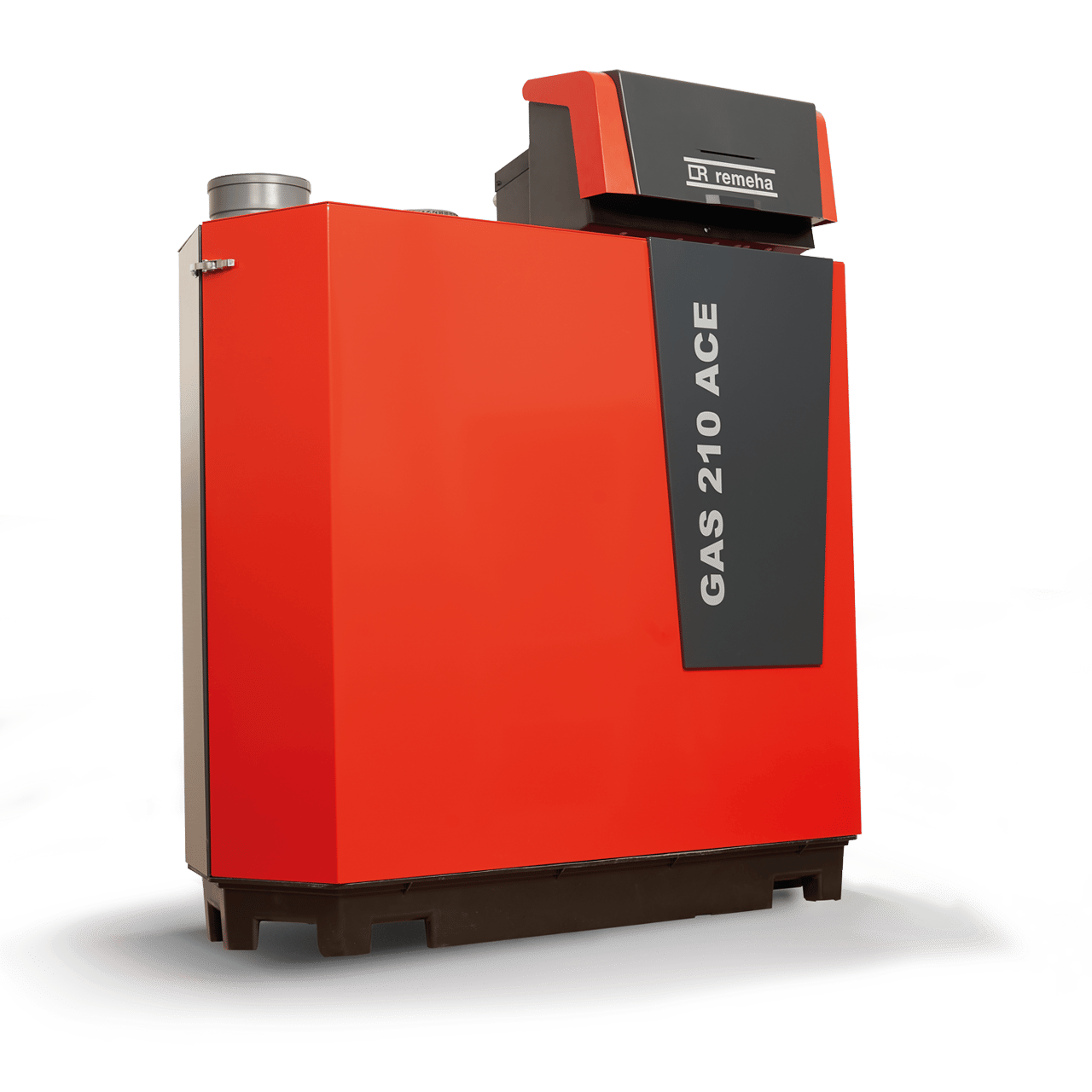

Remeha Gas 210 Ace
Features and Benefits
High-efficiency
High-efficiency floor standing boiler up to 95.8% GCV Seasonal Efficiency – reliable, high-performance operation
Compact size
Extremely compact dimensions and ability to be installed back-to-back – space-saving solution, ideally suited for modular configurations
Environmentally friendly
Low Class 6 NOx emission levels from 33mg/kWh (0% O2 dry) – low pollutant emissions meeting all environmental legislation
Energy efficient
Options for direct weather compensation – close matching of heat demand at all times for maximum energy efficiency
Flexible system integration
Cascade and BMS integration options support scalable system design and seamless connection to building management systems
Easy operation
Digital diagnostic display and remote signalling options – easy operaion and maintenance
Show More
Show Less
Product Literature
Manuals
Manuals
Product Documentation
No documentation available.
Specification Guides
Specification Guides
Product Documentation
No documentation available.
Technical Specifications
Technical Specifications
Product Documentation
No documentation available.
BIM Files
BIM Files
Product Documentation
No documentation available.
CAD Files
CAD Files
Product Documentation
No documentation available.

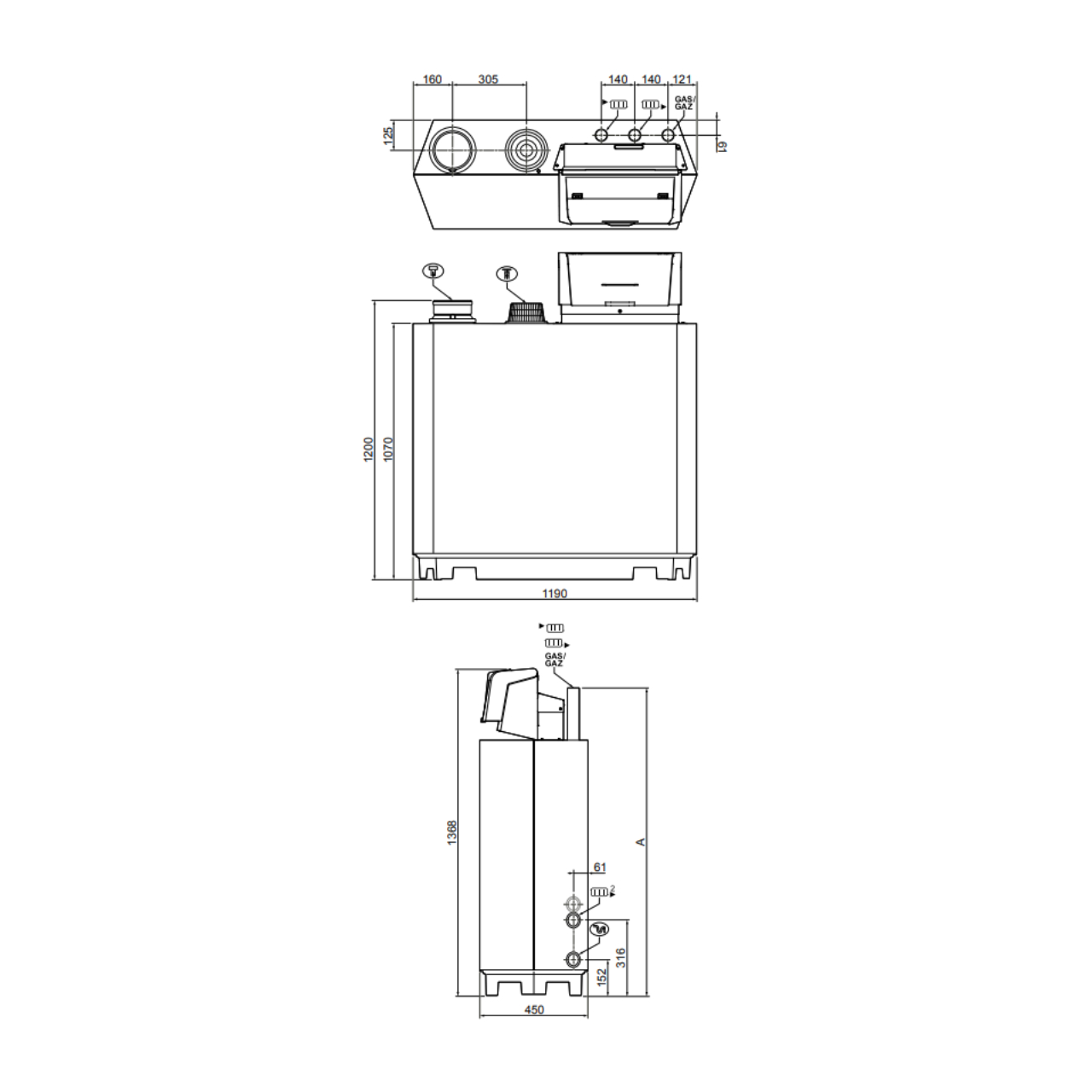

Dimensions
80kW - 200kW
Boiler Width = 1190mm
Boiler Height = 1368mm
Boiler Depth = 450mm
Technical Specification
| Remeha Gas 210 Ace | 80 | 120 | 160 | 200 |
|---|---|---|---|---|
| 3 sections | 4 sections | 5 sections | 6 sections | |
| Performance | ||||
| Nominal heat output central heating operation @ 80/60°C kW (min-max) | 18-87 | 22-120 | 29-166 | 39-200 |
| Nominal heat output central heating operation @ 50/30°C kW (min-max) | 20-93 | 24-129 | 33-179 | 44-217 |
| Nominal input (Hi) (min-max) | 19-89 | 23-123 | 31-170 | 41-205 |
| Efficiency | ||||
| SBEM seasonal efficiency GCV | 95.8% | 95.66% | 95.5% | 95.74% |
| Efficiency – full load 100% NCV | 97.4% | 97.5% | 97.5% | 97.6% |
| Efficiency – part load 30% NCV | 108.6% | 108.1% | 108.3% | 108.4% |
| Eco design useful efficiency @ 80/60°C (100% full load) GCV | 87.7% | 87.8% | 87.8% | 87.8% |
| Eco design useful efficiency @ 50/30°C (30% part load) GCV | 97.7% | 97.5% | 97.3% | 97.6% |
| Gas | ||||
| Standard fuel | Natural gas | Natural gas | Natural gas | Natural gas |
| Optional fuel adjustment – see installation & service manual | LPG (propane) | LPG (propane) | LPG (propane) | LPG (propane) |
| Max gas consumption NG m3/h | 9.4 | 13 | 18 | 21.7 |
| Max gas consumption LPG m3/h | 3.6 | 4.8 | 7 | 8.4 |
| Min/max gas inlet pressure NG mbar | 17-25 | 17-25 | 17-25 | 17-25 |
| Min/max gas pressure LPG mbar | 37-50 | 37-50 | 37-50 | 37-50 |
| Gas connection size BSP inches | 1¼” male thread | 1¼” male thread | 1¼” male thread | 1½” male thread |
| Flame protection | Ionisation | Ionisation | Ionisation | Ionisation |
| Ignition | Electronic | Electronic | Electronic | Electronic |
| Flue (concentric connection supplied as standard) | ||||
| Flue diameter mm I/D | 150 | 150 | 150 | 150 |
| Air inlet diameter mm I/D | 150 | 150 | 150 | 150 |
| Mass flue gas flow rate kg/h | 27-150 | 37-197 | 39-287 | 65-345 |
| Max counter pressure PA | 130 | 130 | 130 | 130 |
| Hydraulics | ||||
| Water content litres | 12 | 16 | 20 | 24 |
| Hydraulic resistance @ 11°C ΔT mbar | 549 | 449 | 566 | 599 |
| Hydraulic resistance @ 20°C ΔT mbar | 165 | 135 | 170 | 180 |
| Nominal flow rate @11°C ΔT l/s | 1.89 | 2.61 | 3.61 | 4.33 |
| Nominal flow rate @ 20°C ΔT l/s | 1.04 | 1.43 | 1.98 | 2.38 |
| Minimum flow rate I/hr | 1120 | 1486 | 2142 | 2585 |
| Condensate connection | 32mm OD | 32mm OD | 32mm OD | 32mm OD |
| Connection size BSP | 1¼” male thread | 1¼” male thread | 1¼” male thread | 1½” male thread* |
| Standard operating temperature °C | 20-90 | 20-90 | 20-90 | 20-90 |
| Max operating temperature °C | 90 | 90 | 90 | 90 |
| Max water temperature °C | 110 | 110 | 110 | 110 |
| Max water operating pressure bar | 6 | 6 | 6 | 6 |
| Min water operating pressure bar | 0.8 | 0.8 | 0.8 | 0.8 |
| General | ||||
| Dry weight kg | 115 | 135 | 165 | 188 |
| Dimension (WxHxD) | 1190 x 1368 x 450 | 1190 x 1368 x 450 | 1190 x 1368 x 450 | 1190 x 1368 x 450 |
| NOx (Dry, 0% 02) Mg/kWh | 56 | 49 | 44 | 52 |
| Noise levels dB(A) at 1 metre | Less than 59 | Less than 59 | Less than 59 | Less than 59 |
| Eco design sound power levels LWA indoors dB | 67 | 67 | 67 | 67 |
| Standby heat Loss | 0.21 | 0.21 | 0.21 | 0.21 |
| Electrical | ||||
| Nominal power supply | 230v x 1Ph x 50hz | 230v x 1Ph x 50hz | 230v x 1Ph x 50hz | 230v x 1Ph x 50hz |
| Start current amps | 26-103 | 28-167 | 49-196 | 48-306 |
| Modulating input V dc | 0-10 | 0-10 | 0-10 | 0-10 |
| Fuse rating amps | 6.3 | 6.3 | 6.3 | 6.3 |
| Controls voltage | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) | 24 (max 4va) |
| Insulation class IP | IPX1** | IPX1** | IPX1** | IPX1** |
* with supplied 1¼" > 1½" reducer bushings
**IP20 when appliance is fitted with a B23 conventional flue
