Baxi 800 Heat

Baxi 800 Heat only Boiler

Heat Only Boilers

Baxi 800 Heat

Our Baxi 800 Heat Only boiler comes with a 10-year warranty and filter in the box.

Features and Benefits

Warranty

10-year parts and labour warranty†

    Filter included

    Comes with an Adey Micro2 magnetic system filter to protect your heating system and boiler*

      Compact size

      Fits inside a standard kitchen cupboard and a rear flue option for an even neater finish

        Compatible

        Compatible with market-leading Megaflo Eco cylinder
          Show More
          Show Less

          Product Literature

          User Guides

          User Guides

          Product Documentation

          No documentation available.

          Installation & Service Manuals

          Installation & Service Manuals

          Product Documentation

          No documentation available.

          Energy Labels

          Energy Labels

          Product Documentation

          No documentation available.

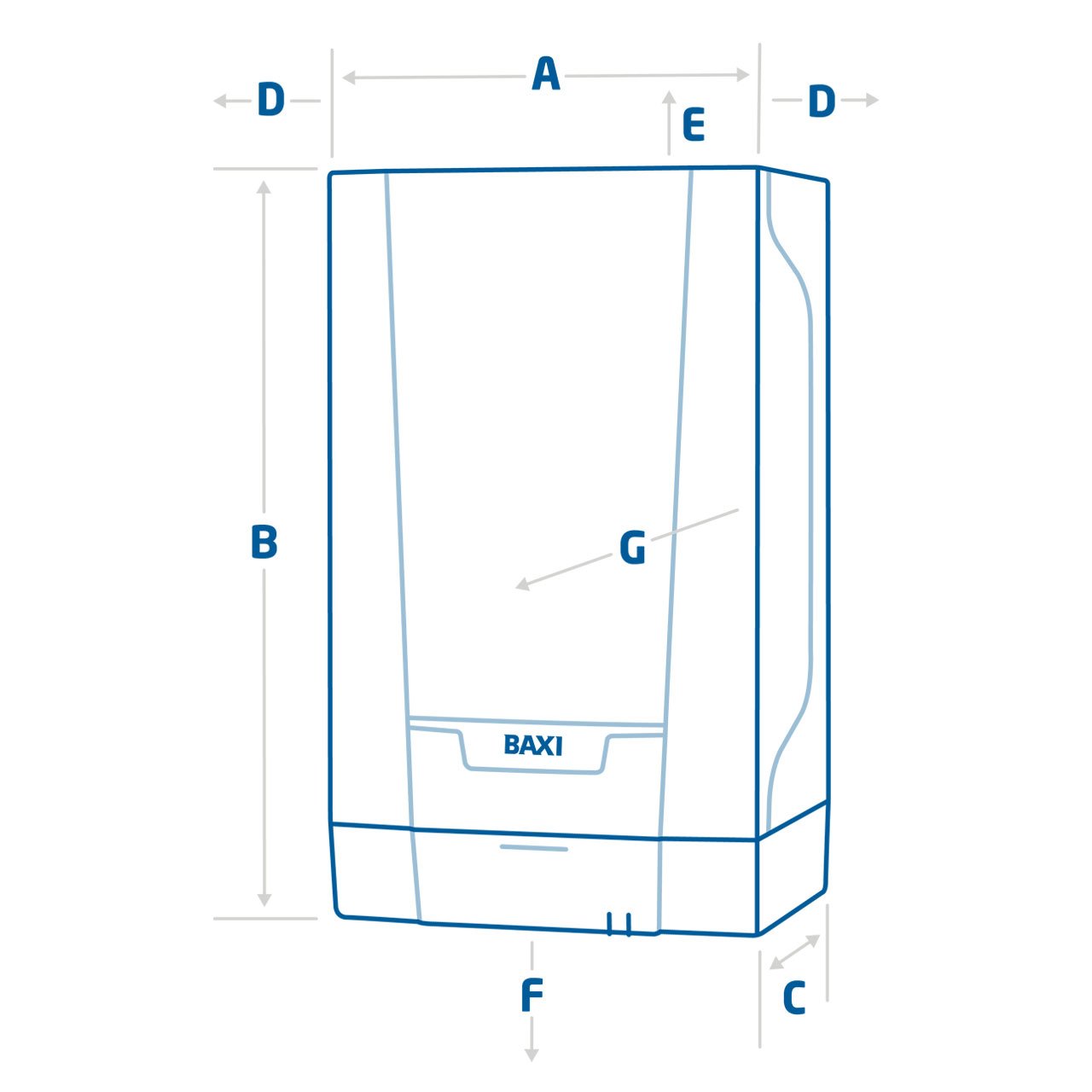

          Baxi Heat Only Boiler Dimensions

          Dimensions

          A: Boiler Width = 370mm

          B: Boiler Height = 625mm

          C: Boiler Depth = 270mm

          D: Side Clearance = 5mm

          E: Upper Clearance = 190mm*, 35mm* if used rear flue

          F: Lower Clearance = 120mm*, 35mm* in 300m deep wall cupboard

          G: Front Clearance= 5mm* in operation (500mm for servicing)

          Related FAQs

          Should I turn off my boiler in the summer?

          Instead of turning off your boiler completely during the summer, when you likely have less need for heating, you can use Holiday Mode to ensure it works at a low level and prevent parts from seizing up later on in the year when you have greater need. You can also set your boiler to only heat your water and not your radiators.

          Is a condensing boiler a combi boiler?

          Most modern combi boilers are condensing models. This means the heat and gases that escape through the flue pipe are captured and reused for efficiency.

          Why is my external condensate pipe freezing?

          Condensate pipes can freeze due to extremely low temperatures or ice building up on the pipe, which will need clearing in order to unction effectively. Insulating your pipe can prevent this from happening.

          Why should I get the water in my central heating system cleaned?

          It’s important to have the water in your central heating system cleaned regularly to prevent sludge buildup, which can lead to blocked pipes and ultimately, cause breakdowns. Repairs needed as a result of sludge are not covered by Baxi warranties.

          Show more

          Related Products

          Find a boiler

          Use our simple tool to find the right Baxi boiler for you.

          Find an installer

          Simply enter your postcode and find a local, trained, Gas Safe registered (where applicable) engineer to give you a no-obligation quote on a new boiler, cylinder or air source heat pump installation.

          Related articles

          * The Adey Micro 2 Filter must be installed and registered at the same time as your boiler for your 10-year warranty to be valid.
